Brass Flare 90° Elbow Manufacturer
Introduction
Kajal Brass Products is a leading manufacturer, supplier, and exporter of high-quality metal components based in Jamnagar, Gujarat. Established in 1999, the company is known for delivering precision-engineered brass, copper, aluminium, SS, and MS metal products that meet both national and international quality standards.
The quality of the fitting is crucial for safely joining pipes and tubes. One of the most often used fittings in industrial, hydraulic, gas, refrigeration and plumbing applications is the Brass Flare 90° Elbow. It ensures smooth flow, stops leaks, and helps establish a strong 90-degree connection. Brass Flare 90° Elbow fittings are one of the most popular options in many industries for building sturdy, leak-proof and long-lasting pipe connections. We are the best Brass Flare 90° Elbow Supplier.
These fittings aid with 90-degree fluid or gas flow direction changes while preserving a dependable and safe connection. Brass flare elbows provide outstanding performance and durability, whether utilised in industrial machinery, hydraulic equipment, gas pipelines, automotive applications or refrigeration systems.
Kajal Brass Products is your dependable partner if you’re looking for a reputable manufacturer of brass flare 90° elbows. We provide high-end brass flare fittings that work exceptionally well even in harsh conditions and adhere to international standards.

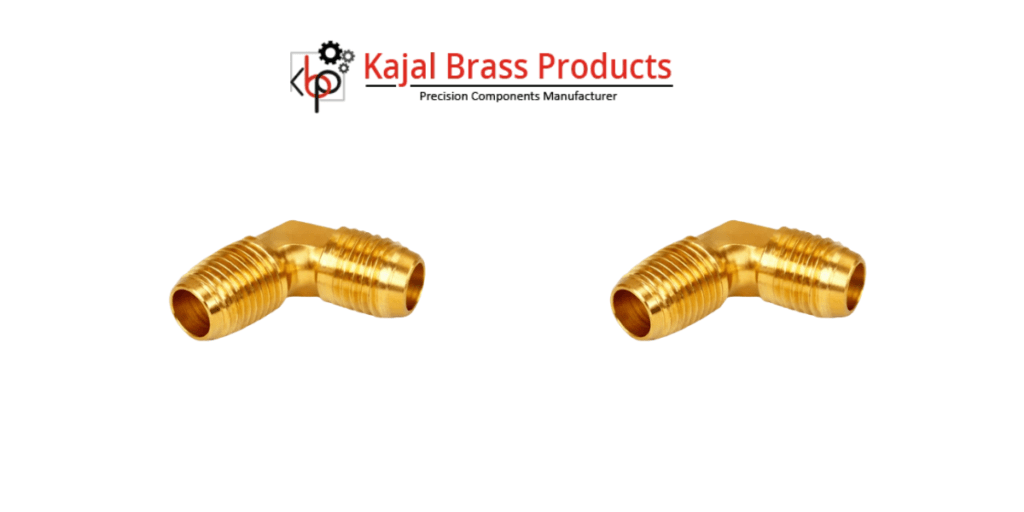

What is a Brass Flare 90° Elbow
- A Brass Flare 90° Elbow is a brass fitting used to connect two flare tubes at a 90-degree angle. It is specially designed to provide a leak-proof connection without welding or soldering. These fittings are widely used in applications where high pressure and reliable sealing are required. We are the best Brass Flare 90° Elbow Exporter.
- Air conditioning systems
- Refrigeration equipment
- Hydraulic systems
- Pneumatic systems
- Automotive industries
- Industrial machinery
- As a leading Brass Flare 90° Elbow Manufacturer, Kajal Brass Products produces precision-engineered fittings that deliver excellent sealing performance even under high pressure. The fitting uses a flare connection that creates a strong mechanical seal, making it ideal for high-pressure and vibration-prone systems.
Why Choose Kajal Brass Products
1. Superior Product Quality
- A trusted Brass Flare 90° Elbow Manufacturer uses premium-grade brass to produce fittings with excellent mechanical strength and dimensional accuracy. High-quality brass offers outstanding corrosion resistance, making the fittings suitable for both indoor and outdoor applications. These fittings are designed to withstand demanding operating conditions while maintaining reliable performance.
2. Leak-Proof Connections
- One of the biggest advantages of brass flare fittings is their ability to create a strong metal-to-metal seal. Reputable manufacturers produce precisely machined flare seats and threads, ensuring leak-free performance even under high pressure and vibration. This makes them ideal for gas lines, refrigeration systems, hydraulic equipment, and compressed air systems.
3. Excellent Corrosion Resistance
- Brass naturally resists rust, oxidation, and corrosion, making it one of the best materials for fluid transfer applications. A quality manufacturer uses high-grade brass alloys that perform well in humid environments, water systems, chemical industries, and marine applications, providing a longer service life than many alternative materials.
4. Precision Engineering
- Leading manufacturers utilise advanced CNC machining and strict quality control processes to ensure every Brass Flare 90° Elbow meets exact dimensional specifications. Accurate threads and smooth internal surfaces improve installation, reduce pressure loss, and ensure consistent fluid flow.
5. High Pressure and Temperature Performance
- Industrial applications often require fittings capable of handling extreme operating conditions. Premium Brass Flare 90° Elbows are designed to perform efficiently under high pressure and varying temperatures, making them suitable for HVAC, refrigeration, hydraulic, and industrial process systems.
6. Wide Range of Sizes and Configurations
- An experienced manufacturer offers Brass Flare 90° Elbows in multiple sizes, thread types, and custom configurations. Whether you need BSP, BSPT, NPT, SAE, or UNF threads, reliable manufacturers can provide products that match your project requirements.
7. Strict Quality Testing
- Quality-focused manufacturers conduct comprehensive inspections and pressure testing before dispatching products. Many manufacturers perform leak testing, dimensional inspection, material verification, and surface finish checks to ensure every fitting delivers dependable performance.
8. Long Service Life
- High-quality Brass Flare 90° Elbows are built for durability. Their resistance to wear, corrosion, and mechanical stress reduces maintenance costs and replacement frequency, making them a cost-effective solution for industrial and commercial installations.
9. Custom Manufacturing Solutions
- Many leading manufacturers offer OEM and customised production services. Custom thread specifications, special dimensions, branding, packaging, and surface finishes can be provided to meet specific customer requirements and export standards.
10. Competitive Pricing
- Choosing an experienced Brass Flare 90° Elbow Manufacturer allows customers to benefit from factory-direct pricing, consistent product quality, and bulk supply capabilities. This is especially valuable for distributors, wholesalers, contractors, and OEMs.
11. Reliable Global Supply
- Established manufacturers maintain efficient production facilities, large inventories, and strong logistics support to ensure timely deliveries for both domestic and international customers. Many also comply with international quality standards and export requirements.
Applications of Brass Flare 90° Elbow
1. HVAC & Refrigeration Systems
- Brass Flare 90° Elbows are extensively used in heating, ventilation, air conditioning, and refrigeration systems. They help redirect refrigerant lines in compact spaces while maintaining a leak-free seal and ensuring efficient system performance.
2. Gas Distribution Systems
- These fittings are widely used in natural gas, LPG, propane, and fuel gas pipelines. Their secure flare connection minimises leakage risks, making them a preferred choice for residential, commercial, and industrial gas installations.
3. Hydraulic Equipment
- In hydraulic systems, Brass Flare 90° Elbows provide smooth directional changes for high-pressure fluid flow. They are commonly installed in hydraulic machinery, industrial equipment, and fluid power systems where durability and pressure resistance are required.
4. Pneumatic Systems
- Pneumatic control systems use these fittings to connect compressed air lines. Their robust construction ensures reliable airflow and prevents air leakage, improving the efficiency of automated machinery and industrial equipment.
5. Plumbing Installations
- Brass Flare 90° Elbows are ideal for plumbing systems that require precise directional changes. They are used in water supply lines, industrial plumbing, and commercial installations due to their corrosion resistance and long operational life.
6. Oil & Fuel Transfer Lines
- These fittings are commonly found in fuel distribution systems, lubrication equipment, and oil transfer pipelines. Their leak-proof flare connection ensures safe handling of petroleum-based fluids under varying pressure conditions.
7. Automotive Industry
- Automotive manufacturers and repair professionals use Brass Flare 90° Elbows in brake lines, fuel systems, transmission cooling lines, and air conditioning units where dependable, vibration-resistant connections are essential.
8. Instrumentation & Process Control
- Brass Flare 90° Elbows are widely used in instrumentation systems for connecting pressure gauges, valves, and measuring devices. Their precision-machined design ensures accurate and secure fluid flow in sensitive applications.
9. Instrumentation and Control Systems
- Precision instruments and pressure control systems require reliable fittings for accurate fluid and gas transfer. Brass Flare 90° Elbows provide dependable performance in instrumentation panels and control assemblies.
10. Marine and Offshore Applications
- Marine systems demand corrosion-resistant fittings capable of withstanding moisture and salt exposure. Brass Flare 90° Elbows are used in fuel, hydraulic, and water systems aboard ships and offshore equipment.
Specification Table of Brass Flare 90° Elbow
| Parameter | Specification |
|---|---|
| Material | Brass Flare 90° Elbow |
| Product Name | High-Grade Brass (CW617N / C36000) |
| Angle | 90° Elbow |
| Connection Type | 45° Flare × 45° Flare |
| Available Sizes | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″ |
| Thread Standard | SAE / UNF |
| Working Pressure | Up to 200 PSI* |
| Temperature Range | -65°F to 250°F (-54°C to 121°C) |
| Finish | Natural Brass / Polished |
| Corrosion Resistance | Excellent |
| Applications | HVAC, Refrigeration, Gas, Fuel, Hydraulic & Pneumatic Systems |
Benefits of Brass Flare 90° Elbow
1. Excellent Corrosion Resistance
- Brass naturally resists corrosion, rust, and oxidation, making Brass Flare 90° Elbows suitable for use in water, gas, oil, refrigeration, and chemical applications. This ensures a longer service life even in harsh environmental conditions.
2. Leak-Proof Flare Connection
- One of the biggest advantages of a Brass Flare 90° Elbow is its flare connection, which creates a tight metal-to-metal seal. This minimises the chances of leaks and makes the fitting suitable for gas lines, refrigeration systems, fuel systems, and hydraulic applications where secure connections are critical.
3. High Strength and Durability
- Manufactured from premium-quality brass, these fittings are highly durable and capable of withstanding heavy pressure, vibration, and mechanical stress. Their robust construction ensures dependable performance even in demanding industrial environments.
4. Excellent Pressure and Temperature Resistance
- Brass Flare 90° Elbows are designed to operate efficiently under high-pressure and high-temperature conditions. This makes them suitable for HVAC units, refrigeration equipment, oil and gas pipelines, and hydraulic systems where performance under extreme conditions is essential.
5. Easy Installation
- These fittings are designed for quick and convenient installation. The precision-machined flare ends allow installers to achieve secure connections without welding or soldering, reducing installation time and labour costs.
6. Smooth Flow Performance
- The precisely engineered 90-degree design provides an efficient change in flow direction while minimising pressure loss and turbulence. This helps maintain consistent fluid or gas flow throughout the system, improving overall operational efficiency.
7. Precision Manufacturing
- Professional manufacturers use advanced CNC machining and strict quality control processes to produce Brass Flare 90° Elbows with accurate dimensions, smooth threads, and excellent sealing performance. Precision manufacturing ensures compatibility with international standards and reduces installation issues.
8. Custom Sizes and Thread Options
- Leading manufacturers offer Brass Flare 90° Elbows in multiple sizes, thread standards, and customised specifications to meet diverse industrial requirements. Whether your application requires BSP, BSPT, NPT, SAE, or custom threads, an experienced manufacturer can provide the right solution.
9. Cost-Effective Solution
- Although brass fittings offer premium performance, they are highly cost-effective because of their long service life, low maintenance requirements, and resistance to corrosion and wear. Their durability reduces replacement frequency and lowers overall operating costs.
10. Suitable for Export Markets
- Trusted Brass Flare 90° Elbow Manufacturers provide products that meet international quality standards and supply customers worldwide. Proper packaging, consistent quality, and timely delivery make them ideal partners for OEMs, distributors, and global industrial buyers.
11. Reliable Quality Assurance
- Reputable manufacturers perform rigorous quality inspections, dimensional checks, and pressure testing before dispatch. This ensures every Brass Flare 90° Elbow delivers dependable performance and meets customer expectations.
Types of Brass Flare 90° Elbows
1. Standard Brass Flare 90° Elbow
This is the most commonly used flare elbow designed for general plumbing, refrigeration, and hydraulic systems.
- Standard flare thread
- Easy installation
- Leak-proof connection
- High-pressure resistance
2. Female Flare 90° Elbow
This fitting has female flare threads on both ends and is widely used in HVAC and refrigeration applications.
- Easy tube connection
- Secure sealing
- Corrosion-resistant
- Long service life
3. Male Flare 90° Elbow
Male flare elbows are designed for connecting flare nuts and tubing in hydraulic and pneumatic systems.
- Hydraulic equipment
- Fuel systems
- Gas pipelines
- Air compressors
4. Forged Brass Flare 90° Elbow
Manufactured from forged brass, these fittings provide superior strength for heavy-duty industrial applications.
- Higher mechanical strength
- Excellent durability
- Better pressure handling
- Suitable for industrial machinery
5. Heavy Duty Brass Flare 90° Elbow
Designed specifically for high-pressure environments where reliability is critical.
- Industrial plants
- Oil & Gas
- Chemical Processing
- Hydraulic Equipment
Conclusion
Selecting a trusted Brass Flare 90° Elbow Manufacturer is essential for ensuring the safety, durability, and efficiency of your piping systems. High-quality brass flare fittings provide leak-proof connections, superior corrosion resistance, excellent pressure handling, and long service life, making them ideal for HVAC, refrigeration, hydraulic, gas, fuel, and industrial applications. We are the best Brass Flare 90° Elbow Exporter in Gujarat.
Kajal Brass Products is committed to delivering precision-engineered Brass Flare 90° Elbow fittings that meet the highest quality standards. With advanced manufacturing facilities, skilled professionals, strict quality control, and customised production capabilities, we provide reliable brass solutions for customers across India and international markets.
