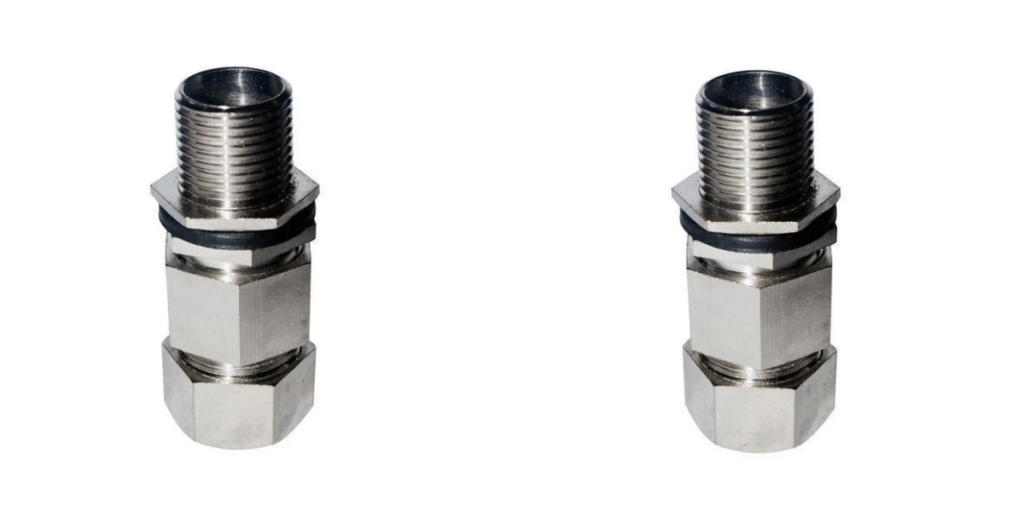

Double Compression Cable Gland
Introduction
Kajal Brass Products is a leading manufacturer, supplier, and exporter of high-quality metal components based in Jamnagar, Gujarat. Established in 1999, the company is known for delivering precision-engineered brass, copper, aluminium, SS, and MS metal products that meet both national and international quality standards.
An essential part for ensuring a dependable, safe, and secure connection between electrical wires and equipment is a double compression cable gland. In addition to offering protection from dust, moisture, and other environmental factors, it is designed to securely grip the cable. Electrical installations, industrial machinery, control panels, power plants, and several other applications make extensive use of these cable glands. In modern electrical and industrial systems, cables need proper protection to ensure safe and reliable performance.
A Double Compression Cable Gland is an important component used to connect and secure cables entering electrical equipment, control panels, junction boxes, motors, and other industrial applications. It provides mechanical support, sealing, and protection against dust, moisture, and other environmental conditions.
Selecting the appropriate cable gland can have a big impact on sectors where dependable connections and cable safety are crucial. A reputable producer and supplier of high-quality brass cable glands for a range of electrical and industrial uses is Kajal Brass Products. Kajal Brass Products is a trusted manufacturer and supplier of quality brass cable glands and cable accessories. With a focus on precision manufacturing, durable materials, and customer satisfaction, the company provides reliable solutions for different industrial cable management requirements.
What Is a Double Compression Cable Gland
A Double Compression Cable Gland is a cable entry device that provides compression at two points of the cable gland. This double compression helps create a strong grip around the cable and provides better sealing. It is commonly used with armoured cables where strong cable retention and environmental protection are required. The gland helps prevent the cable from moving or pulling away from the equipment while also creating a secure seal around the cable entry point.
The gland generally consists of components such as a gland body, locknut, compression ring, sealing ring, and other supporting parts. When the gland is properly installed, it holds the cable securely and helps prevent the entry of dust, water, and other unwanted materials. The double compression design makes these glands suitable for applications where cables need additional mechanical support and environmental protection.
Why Choose Kajal Brass Products
1. Excellent Cable Sealing
- One of the major advantages of a Double Compression Cable Gland is its effective sealing mechanism. The gland provides compression at multiple points, helping create a tight seal around the cable. This reduces the possibility of moisture, dust, dirt, and other contaminants entering the cable termination area.
2. Strong Cable Grip
- Double Compression Cable Glands provide a firm grip on the cable and help prevent unwanted cable movement. This is especially useful in installations exposed to vibration, mechanical stress, or frequent equipment movement. The secure grip also reduces strain on cable connections.
3. Protection Against Moisture and Dust
- Industrial cables are often installed in challenging environments where they may be exposed to rain, humidity, dust, chemicals, and other contaminants. Double Compression Cable Glands help protect the cable entry point by providing an effective sealing arrangement, supporting reliable performance in demanding conditions.
4. Enhanced Mechanical Protection
- The robust construction of these cable glands helps protect cable terminations from mechanical stress and external impact. They are suitable for applications where cables require additional support and protection at the point of entry into electrical equipment.
5. Suitable for Industrial Applications
- Double Compression Cable Glands are commonly used in electrical panels, control systems, motors, switchgear, junction boxes, distribution equipment, instrumentation systems, and industrial machinery. Their versatile design makes them suitable for a wide range of industrial installations.
6. Reliable Performance in Harsh Conditions
- Industrial environments can expose cable connections to temperature variations, vibration, moisture, dust, and mechanical loads. Double Compression Cable Glands are designed to provide dependable cable termination and sealing performance under demanding operating conditions.
7. Durable Construction
- Depending on the application, Double Compression Cable Glands can be manufactured from materials such as brass, nickel-plated brass, stainless steel, or other suitable materials. These material options provide good mechanical strength, corrosion resistance, and long service life when the appropriate gland is selected.
8. Improved Cable Safety
- A properly installed cable gland helps maintain the integrity of the cable entry point. By securely holding and sealing the cable, Double Compression Cable Glands can reduce cable movement and help protect the cable from external mechanical and environmental stresses.
9. Easy Installation
- Double Compression Cable Glands are designed for practical installation and maintenance. They can be selected according to cable diameter, thread type, application requirements, and equipment specifications. Proper sizing and installation ensure effective compression and sealing.
10. Wide Range of Sizes and Configurations
- Double Compression Cable Glands are available in different sizes, thread types, and material options to accommodate various cable dimensions and installation requirements. This makes it easier to select a suitable gland for different electrical and industrial applications.
11. Corrosion Resistance
- For outdoor, marine, chemical, and other corrosive environments, choosing a suitable gland material is important. Nickel-plated brass and stainless-steel options can provide improved resistance against corrosion and environmental exposure, helping extend the service life of the cable termination.
12. Cost-Effective Long-Term Solution
- A high-quality Double Compression Cable Gland can provide long-term cable protection with minimal maintenance. By reducing the risk of moisture ingress, cable movement, and mechanical damage, it can contribute to dependable operation and lower maintenance requirements.
Applications of Double Compression Cable Gland
1. Industrial Electrical Panels
- Double Compression Cable Glands are commonly used in electrical control panels, distribution boards, and switchgear. They provide a secure connection between cables and panel enclosures while protecting the cable entry points from environmental conditions.
2. Power Generation Plants
- These cable glands are suitable for power plants where electrical cables are exposed to demanding operating conditions. They help maintain proper cable termination and provide protection against mechanical stress, vibration, dust, and moisture.
3. Oil & Gas Industry
- The oil and gas sector requires reliable cable-entry solutions for electrical and instrumentation systems. Double Compression Cable Glands are used for cables installed in processing plants, refineries, pipelines, and other industrial facilities where robust cable sealing is essential.
4. Chemical & Petrochemical Plants
- Chemical processing environments can expose electrical installations to moisture, chemicals, dust, and temperature variations. Double Compression Cable Glands provide a strong and sealed cable entry, helping improve the reliability of electrical systems.
5. Heavy Machinery
- Double Compression Cable Glands are used in heavy machinery and industrial equipment to secure power and control cables. Their compression mechanism helps reduce cable movement and provides additional mechanical protection.
6. Renewable Energy Systems
- Solar power plants, wind energy installations, and other renewable energy projects require dependable cable protection. Double Compression Cable Glands are used to secure cables connected to electrical panels, inverters, junction boxes, and other equipment.
7. Mining Industry
- Mining environments can expose electrical cables to dust, vibration, impact, and harsh operating conditions. These cable glands provide strong mechanical support and sealing for electrical installations used in mining equipment and control systems.
8. Marine & Offshore Applications
- Double Compression Cable Glands can be used in marine and offshore electrical installations where cables require reliable sealing and mechanical protection against moisture and demanding environmental conditions.
9. Heavy Engineering Equipment
- Heavy machinery and engineering equipment often require secure cable termination to withstand vibration and mechanical stress. Double Compression Cable Glands provide additional support and help prevent cable movement at the entry point.
10. Automation & Control Systems
- Industrial automation systems use numerous power, control, and instrumentation cables. Double Compression Cable Glands provide organised and secure cable entry into control cabinets, junction boxes, and automation equipment.
11. Railways & Transportation
- Double Compression Cable Glands are also suitable for electrical systems used in railway infrastructure, transportation equipment, and related industrial installations where secure cable termination and mechanical protection are important.
Specification Table of Double Compression Cable Gland
| Specification | Details |
|---|---|
| Material | Double Compression Cable Gland |
| Application | Armoured Electrical Cables |
| Product Type | Brass / Nickel-Plated Brass |
| Alternative Material | Stainless Steel, Aluminium |
| Cable Type | SWA, STA and other Armoured Cables |
| Thread Type | Metric, BSP, NPT, PG, BSC |
| Size Range | M12 to M110 / 1/2″ to 4.5″ |
| Cable Diameter | Varies according to gland size |
| Sealing Type | Double Compression – Inner & Outer Sheath |
| IP Protection | IP66 / IP67 / IP68* |
| Finish | Natural Brass / Nickel Plated |
| Seal Material | Neoprene / EPDM / Silicone |
| Operating Temperature | Approx. -40°C to +120°C* |
| Armour Clamping | Provides Mechanical Retention & Earth Continuity |
| Standard Compliance | IEC 62444 / BS 6121* |
| Accessories | Lock Nut, Earth Tag, Washer, PVC Shroud |
| Application Areas | Electrical Panels, Power Plants, Industrial Machinery, Outdoor Installations |
| Special Versions | Flameproof / Explosion-Proof versions available |
Benefits of Double Compression Cable Gland
1. Strong Cable Grip
- One of the major benefits of a Double Compression Cable Gland is its strong grip on the cable. The gland securely holds the cable in position and helps prevent unwanted movement, pulling, or twisting. This makes it suitable for applications where cables may experience vibration or mechanical stress.
2. Excellent Sealing
- Double Compression Cable Glands provide effective sealing around the outer cable sheath. This helps prevent the entry of dust, moisture, water, and other contaminants into electrical equipment. Reliable sealing is especially important in outdoor and industrial environments.
3. Protection Against Environmental Conditions
- These cable glands are designed to withstand demanding environmental conditions. Depending on the material and construction, they can provide protection against humidity, dust, temperature variations, and corrosion. This makes them suitable for industrial plants, power installations, machinery, and outdoor electrical systems.
4. Enhanced Cable Protection
- The double compression mechanism provides additional protection to the cable at the entry point. It reduces the possibility of cable damage caused by movement, vibration, or mechanical pressure. This can help increase the service life of the cable and connected equipment.
5. Suitable for Armoured Cables
- Double Compression Cable Glands are commonly used with armoured cables. They provide a secure connection between the cable armour and the equipment while maintaining proper sealing. This makes them useful in electrical power distribution and industrial control systems.
6. Improved Safety
- Proper cable termination is essential for electrical safety. A Double Compression Cable Gland helps keep the cable firmly secured and properly sealed, reducing the risk of loose connections and environmental contamination. When correctly selected and installed, it contributes to a safer electrical installation.
7. High Mechanical Strength
- These glands are manufactured to provide reliable mechanical strength. They can handle cable movement, vibration, and external forces in demanding applications. This makes them suitable for heavy-duty industrial environments.
8. Reliable Performance in Industrial Applications
- Double Compression Cable Glands are used in many industries because of their robust construction and dependable performance. They can be used in manufacturing plants, power generation facilities, oil and gas installations, infrastructure projects, control panels, and machinery.
9. Easy Installation
- Double Compression Cable Glands are designed for practical installation. Once the correct gland size is selected according to the cable diameter and type, the gland can be installed to provide a secure and properly sealed cable entry.
10. Long Service Life
- Quality Double Compression Cable Glands are manufactured using durable materials such as brass, stainless steel, or other suitable materials. Their strong construction and resistance to environmental conditions allow them to provide reliable performance for a long period with proper installation and maintenance.
11. Better Protection for Electrical Equipment
- A cable entry is an important point of protection for electrical enclosures. Double Compression Cable Glands help maintain the sealing of the enclosure while securely holding the cable. This helps protect internal electrical components from dust, moisture, and other external contaminants.
Types of Double Compression Cable Gland
1. Brass Double Compression Cable Gland
- Brass double compression cable glands are widely used because brass provides good mechanical strength, durability, and corrosion resistance. These glands are suitable for industrial electrical installations, control panels, machinery, and cable entry applications. They can also be manufactured in different sizes and thread types according to customer requirements.
2. Nickel Plated Brass Double Compression Cable Gland
- Nickel-plated brass glands have an additional nickel coating over the brass surface. This improves surface protection and provides better resistance against corrosion and environmental exposure. They are suitable for applications where the gland may be exposed to moisture, chemicals, or demanding industrial conditions.
3. Double Compression Cable Gland for Armoured Cable
- These glands are specifically designed for armoured cables. They provide cable gripping and sealing while also allowing the armour to be properly secured. They are commonly used in industrial plants, power distribution systems, control systems, and heavy electrical installations.
4. Weatherproof Double Compression Cable Gland
- Weatherproof cable glands are designed to provide additional protection against moisture, dust, and outdoor environmental conditions. They are useful for outdoor electrical equipment, industrial machinery, power installations, and other applications where cables may be exposed to changing weather conditions.
5. Explosion-Proof Double Compression Cable Gland
- Explosion-protected cable glands are designed for specific hazardous-area applications. They are manufactured according to the required standards and certification requirements for the intended installation. These glands may be used in industries such as oil and gas, petrochemicals, chemicals, and other hazardous environments. The correct certified gland must always be selected according to the equipment, cable, hazardous-area classification, and applicable standards.
Conclusion
A Double Compression Cable Gland provides a reliable solution for securing and protecting cables in industrial and electrical installations. Its dual compression arrangement offers strong cable gripping, effective sealing, and improved protection compared with basic cable entry solutions.
Kajal Brass Products offers quality Double Compression Cable Glands for industrial and electrical requirements, with options designed around different sizes, materials, finishes, and application needs. By selecting the correct gland specification and ensuring proper installation, industries can achieve safer, more reliable, and durable cable connections.
